The Pontiac GTO engine story covers 11 model years, from a 389-cubic-inch V8 in 1964 to a 350 in 1974. In between came three-carburetor setups, Ram Air hoods and a 455. These eight engines trace that whole arc.
One rule runs through the list. Every horsepower figure belongs to the model year named beside it, because GTO ratings changed almost every season. Also, by 1971 Pontiac quoted both gross and net output, and the 1974 figure is net only, so the late numbers aren’t measured the same way as the early ones.

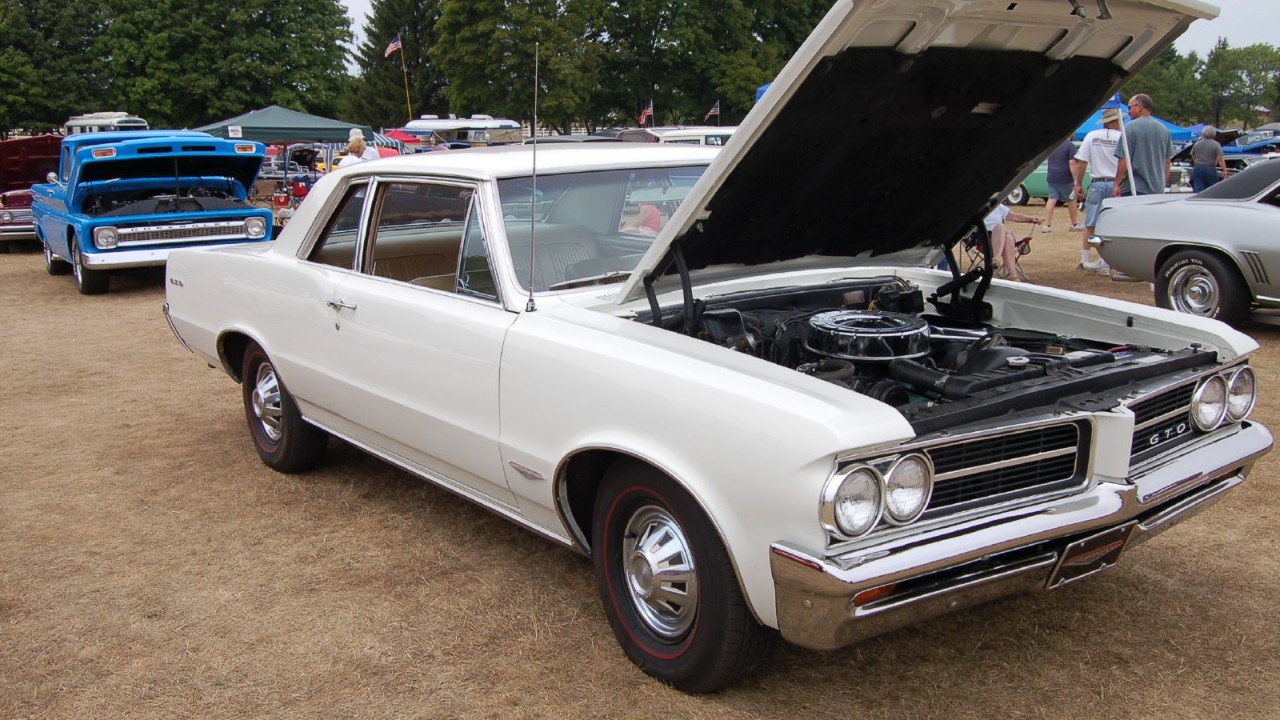

1. 1964 Pontiac GTO 389 four-barrel
The first GTO came standard with a 389-cubic-inch V8 breathing through a single Carter four-barrel. That was the entry engine, not the top option, even in year one. Still, it set the baseline for every later GTO powerplant.
For 1964, the year-by-year engine guide at Web-Cars lists the four-barrel 389 at 325 hp. The figure matters because it changed the very next season. So a 1964 car and a 1965 car with the “same” base engine wear different ratings.

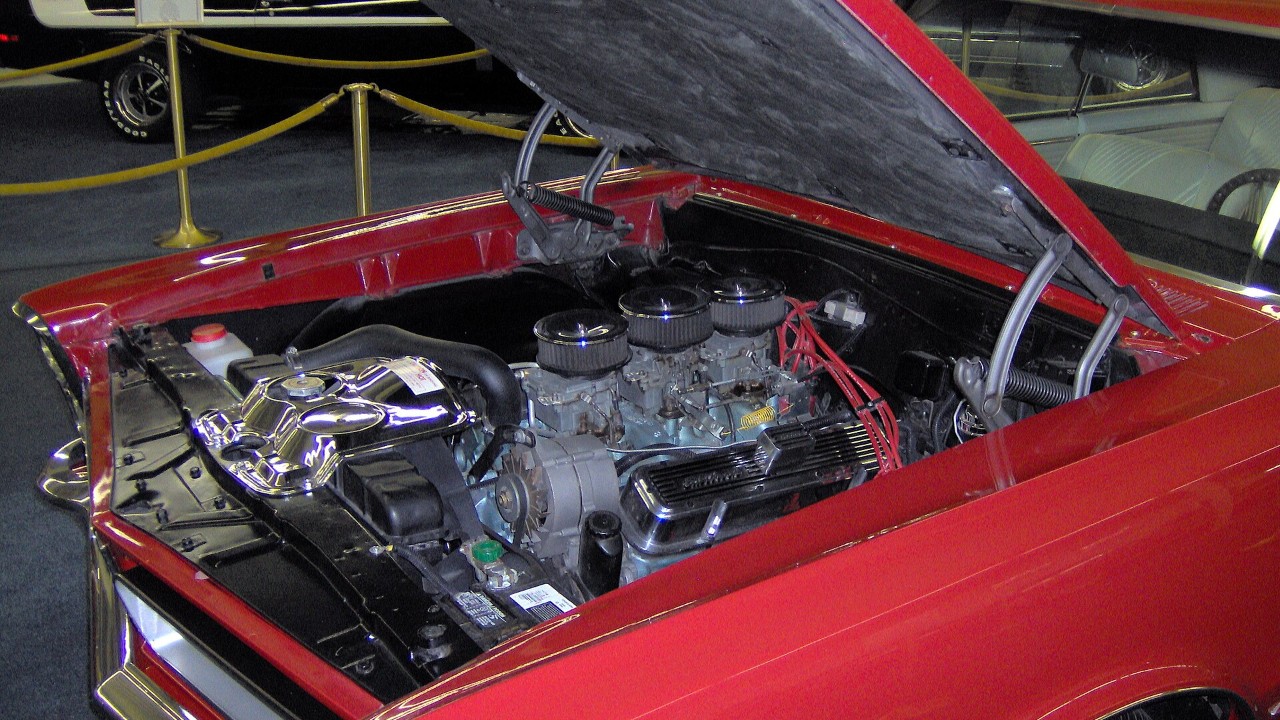

2. 1965 Pontiac GTO 389 Tri-Power
Tri-Power meant three Rochester two-barrel carburetors on the 389. According to Web-Cars, the 1964 version ran 10.4:1 compression and carried a 348-hp rating. For 1965, the Tri-Power rating rose to 360 hp, while the single-carburetor engine climbed to 335 hp.
The 1965 cars also got the first factory hint of ram air. Hagerty’s Ram Air history says dealers sold the Air Scoop Package only over the counter and only for the Tri-Power 389. Then, for 1966, came the “XS” engine with a “744” camshaft. Pontiac records show 190 XS engines manufactured, Hagerty adds, but not how many went into cars at the factory.

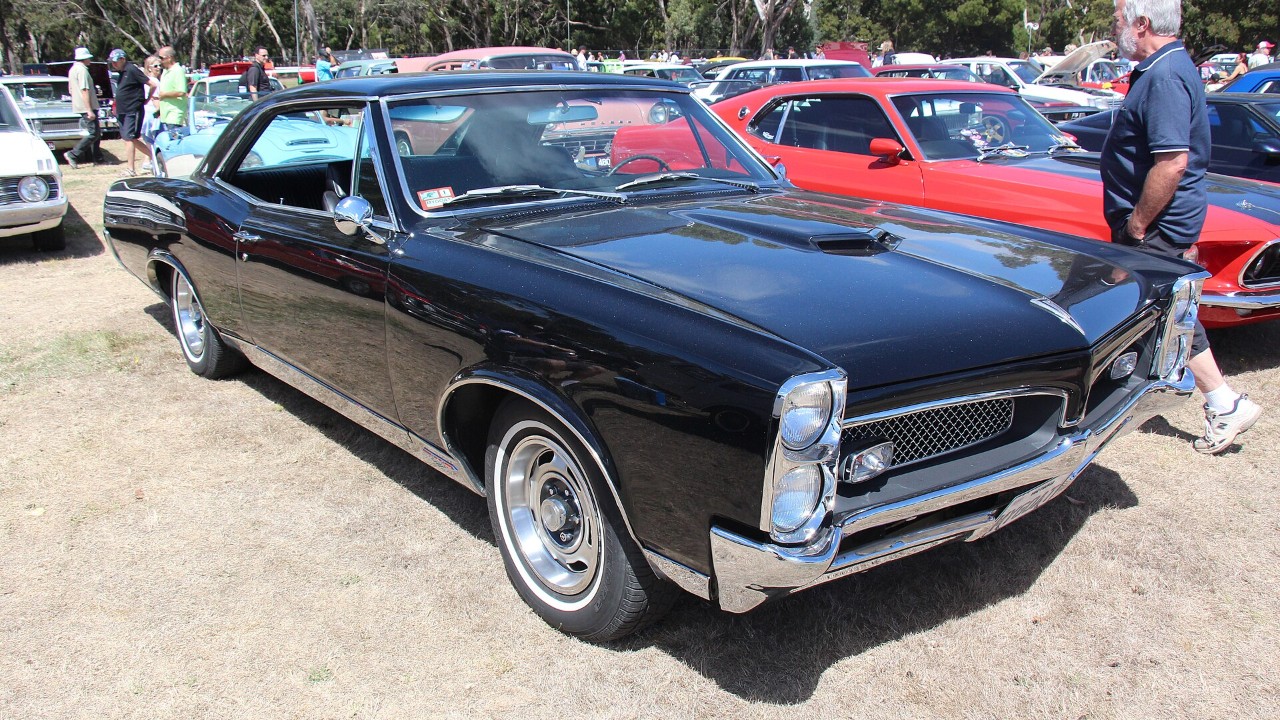

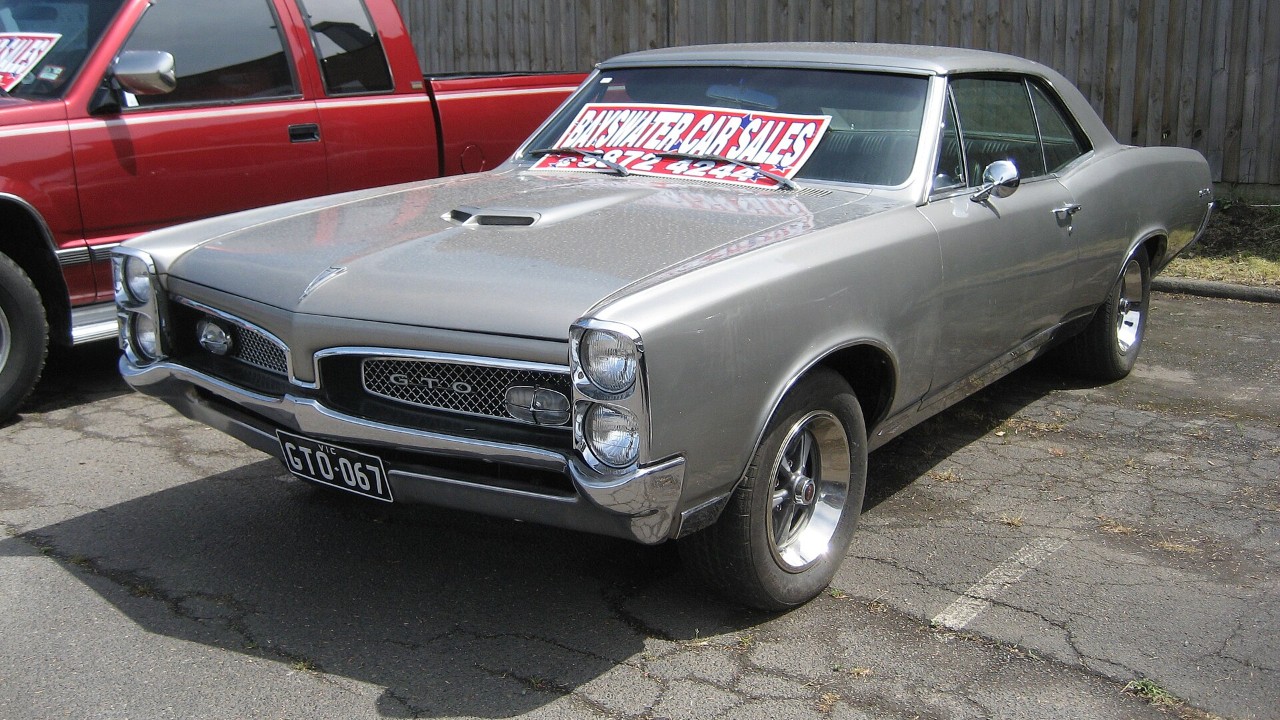

3. 1967 Pontiac GTO 400 engine
For 1967, Pontiac bored the GTO out to 400 cubic inches and retired Tri-Power. Instead, a Rochester Quadra-Jet four-barrel fed the standard engine. Web-Cars gives that 1967 Pontiac GTO 400 engine a rating of 335 hp.
At the other end of the order sheet sat a two-barrel 400. It ran a low 8.6:1 compression ratio and carried a 255-hp rating, per the same Web-Cars engine guide. In other words, a 1967 GTO buyer could pick anything from an economy V8 to a 360-hp option under the same badge.
4. 1967 Pontiac GTO 400 Ram Air
That 360-hp option was the 400 Ram Air, offered for the full 1967 model year. Hagerty notes that Pontiac phased in “997” cylinder heads on it during May 1967. For 1968, the package carried over almost unchanged at the same 360 hp.
Midway through 1968, however, Pontiac replaced it with the Ram Air II. The update used an “041” camshaft with 308/320 degrees of duration. It stayed in production for less than five months, and Hagerty counts just 246 GTOs built with it, the fewest of any Ram Air GTO.

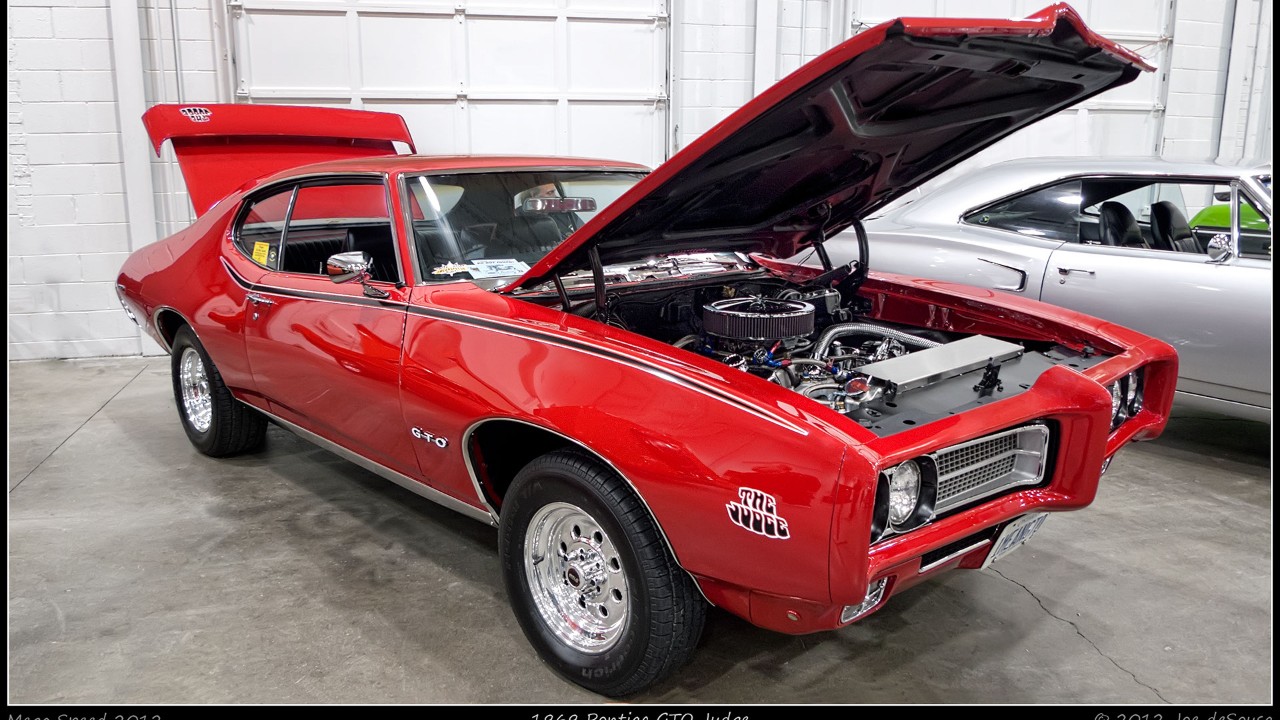

5. 1969 Pontiac GTO Ram Air III
The Ram Air III became the mainstream hot 400 for 1969 and 1970. Hagerty rates it at 366 hp. That rating put it between the standard 400 and the top option of those two years.
For 1970, Pontiac trimmed its compression by a quarter-point with new “12” heads. Even so, the advertised figure did not move. According to Hagerty, the 1970 Ram Air III kept its 366-hp rating.
6. 1969 Pontiac GTO Ram Air IV
Above the Ram Air III sat the Ram Air IV, the top of the 400 range in 1969 and 1970. Web-Cars lists it at 370 hp for 1969. On paper, that is only four horsepower more than the Ram Air III.
The 1970 version changed under the skin, though. Pontiac fitted “614” cylinder heads and cut compression by a quarter-point. Yet Hagerty reports that the Ram Air IV’s 370-hp rating stayed the same.

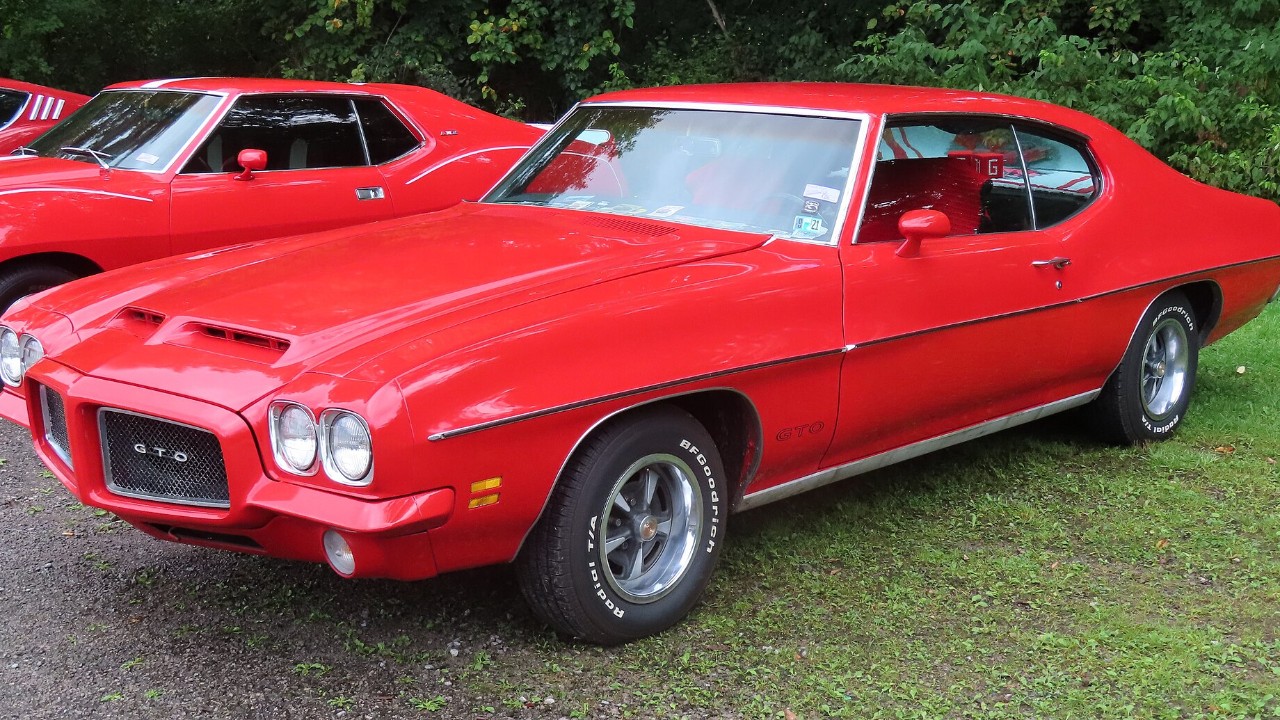

7. 1971 Pontiac GTO 455 HO
By 1971, the biggest GTO engine was the 455 HO. Hagerty dates it to the 1971 and 1972 model years and lists 8.4:1 compression, round-port heads and the “068” camshaft. Pontiac rated it at 335 hp gross and 310 hp net, listing both figures.
Air induction was not standard on the 1971 455 HO, except on the Judge. For 1972, though, the hood setup became mandatory with that engine, according to Hagerty’s Ram Air history. A Super Duty engine was planned for 1973 and 1974 as well, but it never went into a GTO.
8. 1974 Pontiac GTO 350
The last original GTO moved off the A-body and onto the X-body Ventura, which Mac’s Motor City Garage describes as Pontiac’s restyled version of the Chevy Nova. Its only engine was a Pontiac-built 350 with 7.6:1 compression and a Rochester Quadrajet. Web-Cars also lists the 1974 GTO 350 at 200 hp.
That 200 hp is an SAE net figure at 4,400 rpm, with 295 lb-ft of torque at 2,880 rpm, per Mac’s Motor City Garage. A functional shaker air cleaner poked through the hood. The WW3 GTO package added $415 to $461 to a Ventura that started around $3,000, and Pontiac sold slightly more than 7,000.
