The Harley-Davidson Sportster arrived in 1957 with a new 883cc overhead-valve twin, and the factory kept reworking that engine for decades. Over time it became a stripped scrambler, a 1000cc road bike, a black cafe racer and finally a street machine wearing dirt-track heads. These five models trace that path from the first XL to the XR1000.
Every engine and horsepower figure below belongs to the model year in its heading. That matters with Sportsters, because the engine changed size and tune more than once.
1. 1957 Harley-Davidson XL Sportster
The first Sportster ran a new overhead-valve engine, but Harley kept its tune mild. Compression on the 1957 XL was just 7-to-1. Ready to ride with two gallons of gas aboard, the bike weighed 395 pounds, so it felt light next to the big twins of the day.
Production stayed small in year one. According to Rider Magazine, Harley built 1,983 of the 1957 XLs. By comparison, Sportster output reached 2,765 units in 1960, according to a 2014 Sportster production history. That is roughly 40 percent growth in three seasons.

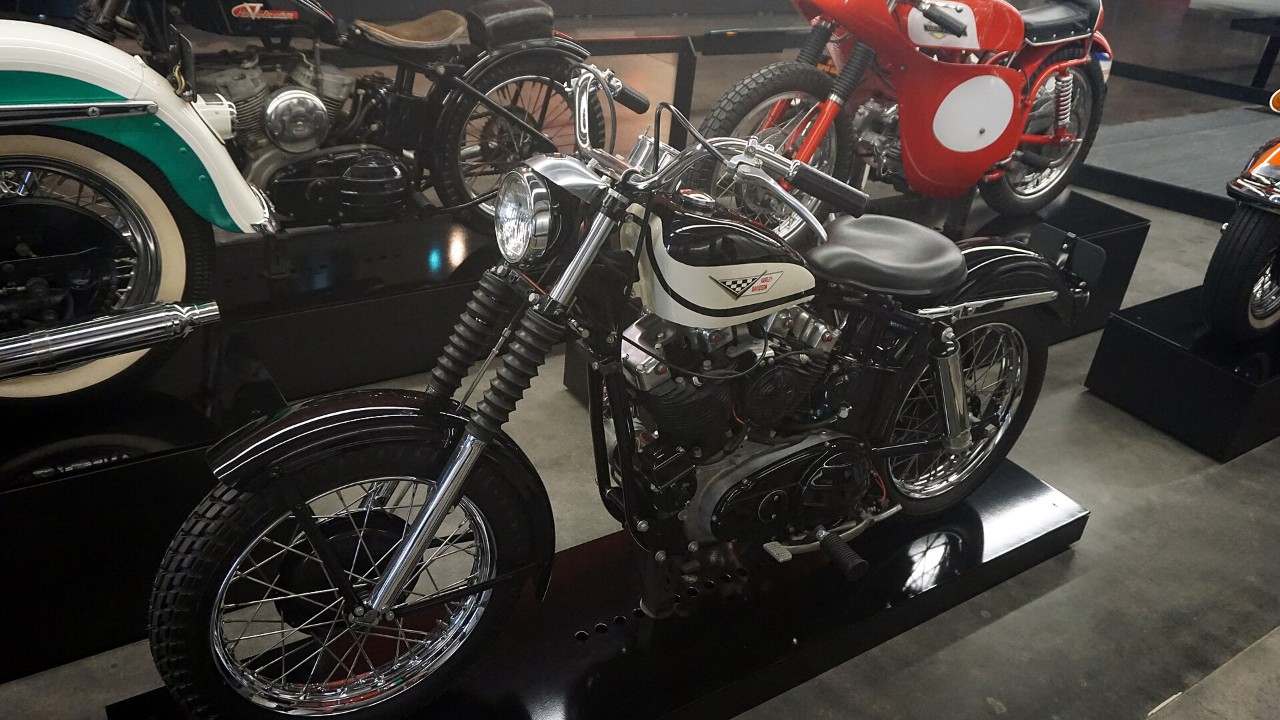

2. 1958 Harley-Davidson XLCH Sportster
Dealers wanted a lighter, faster Sportster, and for 1958 they got one. The XLCH had raised compression, larger valves and hotter camshafts. It also carried less weight and a smaller fuel tank. Meanwhile, Harley sold the XLH, the XLC and the racing XLR alongside it that year.
Approval came with a warning attached. Rider Magazine quotes Mr. Davidson telling the team, “If we build 100 of the damn things—you’d better sell every one of ’em!” In the end, dealers sold 286 XLCHs in 1958. Even so, the name lasted, and Cycle World was still road-testing an XLCH in 1972.

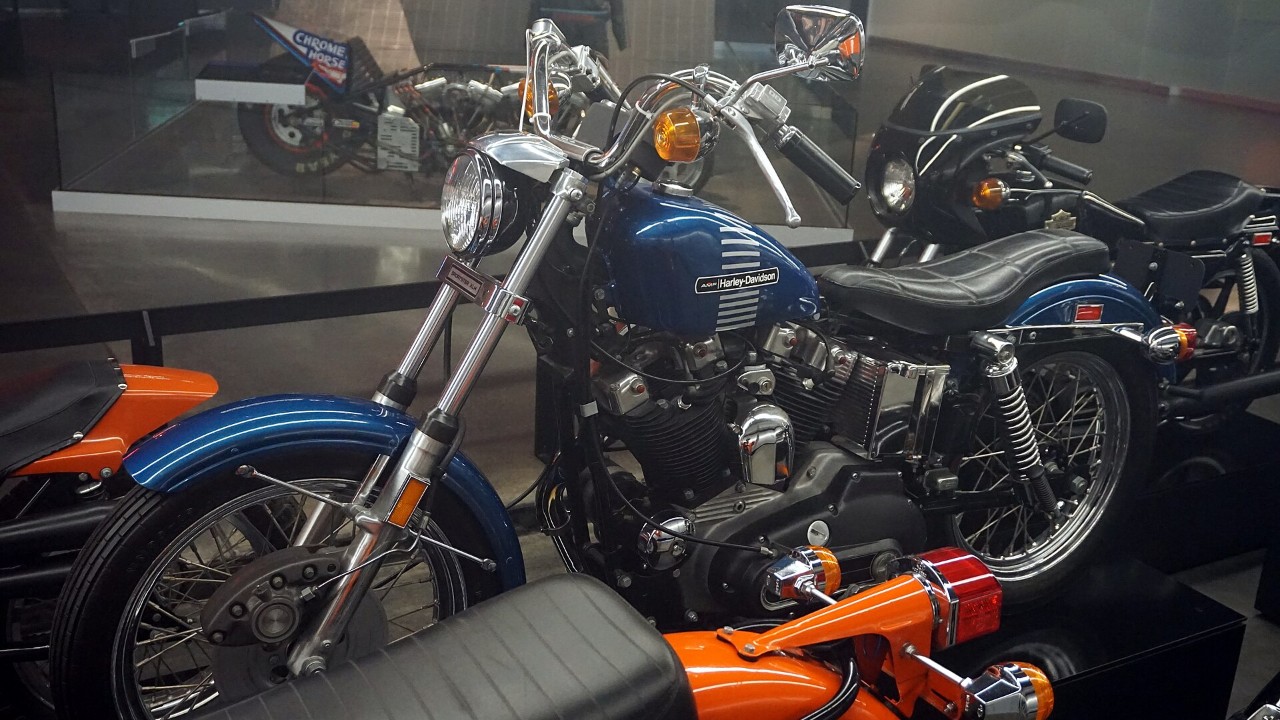

3. 1972 Harley-Davidson XLCH Sportster 1000
For 1972, Harley stretched the Sportster engine from 883cc to 1000cc. In practice, the new figure was 997.5cc, or 60.9 cubic inches, on 9.0:1 compression. Engineers got there by opening the bores by almost 5mm. As a result, they also had to move the cylinder hold-down bolts farther apart.
In its road test of the 1972 XLCH 1000, Cycle World ran a 13.38-second quarter mile at 97.71 mph on stock mufflers. With straight pipes and bigger jets, its best pass dropped to 12.76 seconds at 102.62 mph. The test bike cost $2,136. Two years later, Sportster production peaked at 23,830 units, according to that same 2014 history.

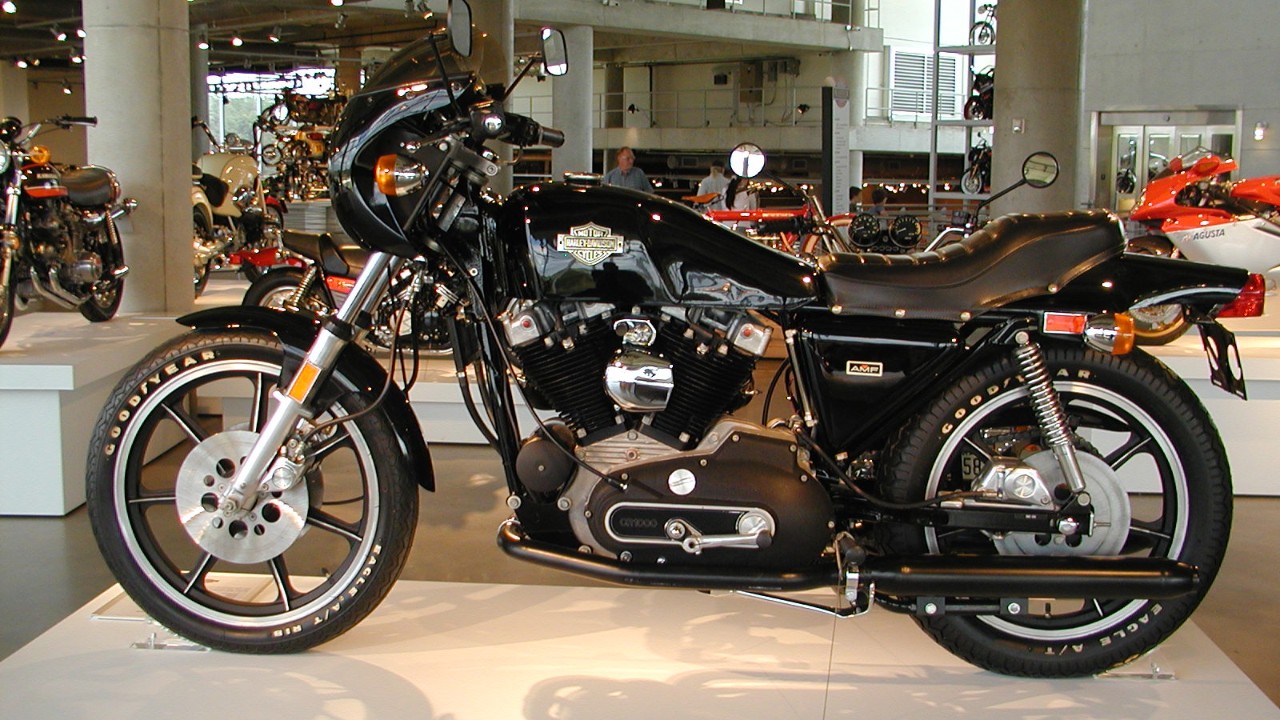

4. 1977 Harley-Davidson XLCR Cafe Racer
Design director Willie G. Davidson drew the XLCR as a factory cafe racer. It had low bars, rear-set pegs, a blacked-out engine and exhaust, Morris mag wheels and triple disc brakes. Its 1977 engine displaced 61 cubic inches, or 1000cc. That twin made 68 horsepower and drove a four-speed gearbox.
Buyers stayed away, however. The XLCR cost $3,600 new in 1977 and trailed Japanese and European rivals on handling. Consequently, only 3,123 were made across 1977 and 1978, says the National Motorcycle Museum. The museum adds that an excellent original XLCR is now worth nearly five times its price when new.
5. 1983 Harley-Davidson XR1000
The XR1000 put Harley’s dirt-track hardware on a street Sportster. Its alloy heads came from the XR750 racer, and California tuner Jerry Branch assembled, ported and polished them. Two 36mm Dell’Orto carburetors breathed through big, open K&N filters. Meanwhile, the high exhaust copied the XR750’s almost exactly.
According to Rider Magazine, the 998cc twin in the 1983–84 XR1000 made about 57 horsepower at the rear wheel. At $6,995, it also cost as much as Harley’s own Super Glide Big Twin. Rider dates the launch to 1982, while Bike-urious notes it was sold only as a 1983 and 1984 model. Cycle World’s March 1983 test of a pre-production bike ran the quarter mile in 12.88 seconds at 101.23 mph.
